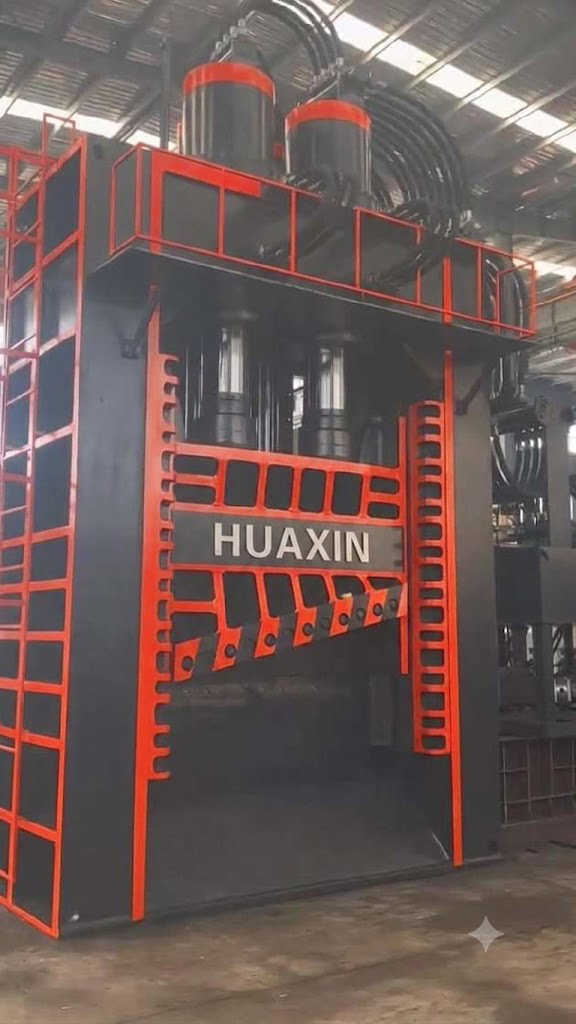

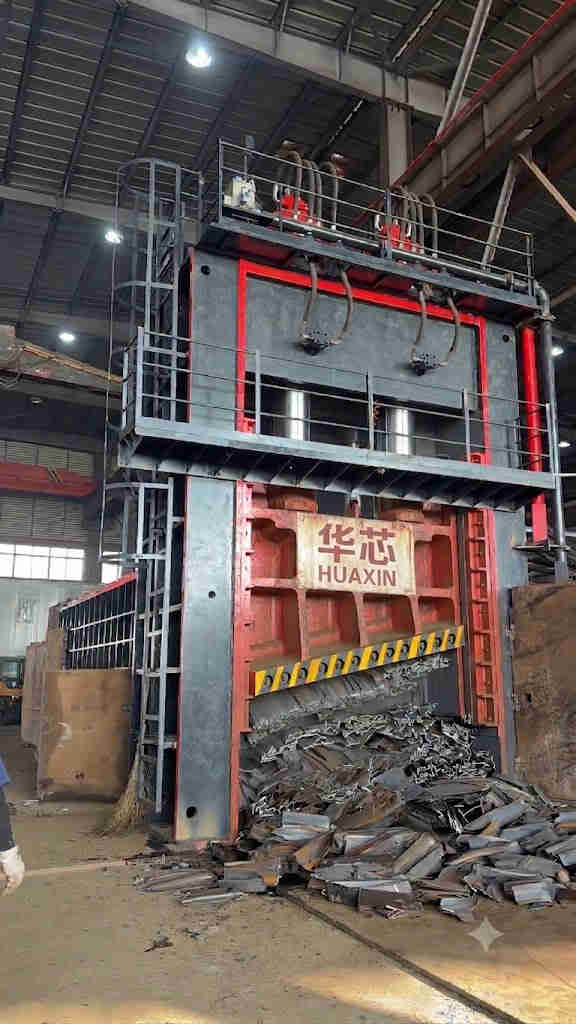

1600 Ton Scrap Metal Shear Machine – Hydraulic Gantry Q91-1600

The Q91-1600 is a 1600 ton scrap metal shear (16,000 kN) engineered for steel mills, shipbreaking bases, and regional scrap hubs running 200-240 tons per day (25-30 t/h) across continuous three-shift operations. 150 mm (6″) Plate Continuous Duty: shears carbon and marine steel plate up to 150 mm all shift (190 mm (7″) peak), solid round bars up to Ø230 mm, and rolling-mill billet crops. 2,400-2,600 mm (94-102″) Guillotine Throat: 7-8 m compression box processes deformed bridge girders, bundled railway tracks, rebar bundles, and compacted bales in one stream. 330-440 kW N+1 Redundant Drive: powered by 6×55 kW or 8×55 kW industrial motors with offline oil filtration and heat exchangers for 24/7 uptime. Built for Steel Mills & Mega-Yards: CE and ISO 9001 certified; transformer sizing, civil foundation loads, and conveyor layouts included with your quote within 48 hours.

Why Choose Huaxin

  • Check Mark Real Factory, 30+ Years Manufacturing Experience
  • Check Mark 24/7 Technical Support
  • Check Mark Customized Solutions Available
  • Check Mark Installation & Training Support

Description

1600 Ton Scrap Metal Shear for Sale – Mill-Scale 24/7 Furnace Charge Line

The Q91-1600 is a 1600 ton scrap metal shear (16,000 kN hydraulic guillotine type) built for steelworks, shipbreaking facilities, and high-tonnage ferrous processing bases where the shear operates as a primary melt-shop production unit. Delivering 200 to 240 tons of sized furnace charge per day (25 to 30 tons per hour), this machine pairs a 2,400-2,600 mm (94-102″) extra-wide knife throat with a 7 to 8 meter compression chamber and a 330-440 kW multi-pump hydraulic station. It is engineered from the ground up to shear 150 mm (6″) solid steel plate, heavy box girders, rolling-mill billet returns, and compacted scrap bales on a continuous three-shift schedule.

Which Industrial Operations Specify the Q91-1600

Steel mills and large-scale processors invest in the 1600-ton class when daily volume and section thickness outgrow standard yard equipment:

  • Electric arc furnace (EAF) and BOF melt shops sizing 200-240 tons/day of internal rolling-mill returns, heavy plate crops, and HMS 1 & 2 directly into charging buckets at 0.9-1.3 t/m³ bulk density.
  • 24/7 three-shift regional scrap bases where unscheduled stops halt furnace charging or vessel loading, requiring N+1 multi-pump redundancy and heavy-duty thermal cooling.
  • Rail, bridge, and marine dismantling hubs cutting 120-150 mm (5-6″) ship hull plates, bridge girders, bundled railway tracks (UIC60/AREA), and full-size scrap bales in a single mixed workflow.

Most buyers commission the Q91-1600 when upgrading furnace capacity beyond what a 1000T or 1250T shear can feed, or when replacing entire manual oxy-fuel torch-cutting bays with one automated hydraulic line.

Turnkey Civil, Substation and Material-Flow Engineering

Installing a 330 kW to 440 kW (6×55 kW or 8×55 kW) shearing line with an operating weight well over 110 tons requires coordinated civil and electrical planning. The reinforced concrete foundation pit, 500-630 kVA step-down transformer supply, overhead crane reach, and outfeed discharge conveyors must work as a unified system. Every quotation we issue for a 1600 ton scrap metal shear includes static and dynamic foundation load drawings, electrical single-line schematics, and crane rigging plans so your plant engineers can prepare the bay accurately before shipment.

Key Specifications – Q91-1600 1600 Ton Hydraulic Gantry Shear

Parameter Q91-1600 Mill-Scale Specification
Model Q91-1600 Heavy-Duty Hydraulic Gantry Scrap Shear
Max shearing force 1600 ton (16,000 kN)
Blade length (throat width) 2,400 mm (94″) or 2,600 mm (102″)
Installed motor power 6×55 kW (330 kW) or 8×55 kW (440 kW) multi-pump groups
Single cycle time 20-35 seconds per cut (with differential fast-approach valve)
Production throughput 200-240 tons/day (approx. 25-30 tons/hour, material-dependent)
Compression box length 7 m / 7.5 m / 8 m (customizable up to 9 m for long mill sections)
Baled scrap shearing Yes, rated for full-size ferrous and non-ferrous bales
Power supply & transformer 3-phase industrial grid (500-630 kVA transformer) or on-site power station
Input voltage 380V / 400V / 415V / 230V / 440V, 50 Hz or 60 Hz
Blade material & hardness H13 or M6V alloy tool steel, 56-62 HRC, four-sided reversible
Control & automation Siemens/Schneider PLC full-auto, remote pulpit/wireless, SCADA-ready
Certifications CE / ISO 9001
Manufacturing plant Huaxin Co., Ltd., Tangshan, China

What the Q91-1600 1600 Ton Scrap Metal Shear Cuts – 150 mm Plate, Billets & Bales

Material Duty Ratings & Maximum Section Sizes

Scrap Material Stream Q91-1600 Three-Shift Duty Rating
Carbon & marine steel plates Up to 150 mm continuously; up to 190 mm for occasional peak cuts
Solid round bars & square billets Solid round steel up to Ø220-240 mm; square blooms/billets up to 190×190 mm (7″×7″)
Compacted scrap bales Standard continuous capability: slices high-density bales into furnace charge blocks
Heavy melting steel (HMS 1 & 2) Continuous 24/7 three-shift operation
Rebar bundles & rolling-mill crops Whole mill rebar bundles, cobbled bar, and concrete-encased demolition cages
H-beams, I-beams & box girders Heavy structural columns, bridge box girders, and deformed dismantling steel
Railway tracks & rolling stock Bundled heavy rail tracks (UIC60/AREA), fishplates, railcar frames, and bogies
Thick-wall pipes & foundry returns Seamless oilfield casing, boiler drums, foundry riser pads, and broken ladle skulls

Operating Boundaries: Continuous, Peak and Flagship Upgrade

  • Continuous three-shift duty: carbon and alloy steel plate up to 150 mm, 100% heavy HMS 1 & 2, bundled rebar, railway rails, and compacted bales at 200-240 tons/day.
  • Occasional peak duty: clean carbon steel plate up to 190 mm (isolated cuts per shift).
  • When to step up to 2000T: if your plant requires over 240-300 tons/day from a single unit, or cuts 170-190+ mm heavy plate and massive ship sections all shift long, step up to our 2000 ton flagship gantry shear.

Engineering for 24/7 Three-Shift Availability (330-440 kW Hydraulics & Frame)

Multi-Pump N+1 Redundancy and Offline Thermal Cooling

In a three-shift steel mill, a single pump fault cannot be allowed to halt furnace charging. The Q91-1600 hydraulic power station divides its 330 kW (6×55 kW) or 440 kW (8×55 kW) drive across six to eight independent motor-pump groups paired with high-pressure axial piston pumps. During start-up, PLC-controlled sequential staging prevents voltage dips on your plant substation. If one motor-pump unit requires servicing, maintenance crews can isolate that branch valve and keep the shear running at 85% speed on the remaining pumps. Dedicated water-cooled or forced-air heat exchangers combined with an independent kidney-loop offline filtration circuit maintain hydraulic oil below 55°C and prevent valve spool stiction during 24-hour summer operation.

Furnace-Annealed Q355B Gantry, Pre-Decompression Manifold & Blades

Fracturing 150 mm (6″) solid plate under 16,000 kN of thrust releases extreme decompression energy. We fabricate the Q91-1600 gantry uprights, upper crosshead, and lower anvil bed from ultra-thick Q355B structural steel plates using full-penetration submerged-arc welding, followed by full furnace stress-relief annealing to prevent weld fatigue over a 10+ year service life. Proportional pre-decompression cartridge valves bleed off peak cylinder pressure in milliseconds before the return stroke, eliminating hydraulic pipe hammer. The 2,400-2,600 mm (94-102″) guillotine slide runs on four-way adjustable, self-lubricating bronze wear guides to hold tight blade clearance, while the 7-8 m compression box is armored with replaceable NM400 wear liners.

Mill-Scale Applications – Internal Scrap Loops, Rail & Infrastructure

1. Internal Rolling-Mill Scrap Loops (Rebar Bundles & Billet Returns)

Rolling mills and steel service centers generate off-spec rebar bundles, cobble scrap, crop ends, and billet returns on their own floors. Operating an on-site 1600 ton scrap metal shear lets the mill size 200-240 tons/day of internal returns straight back into EAF charging buckets, eliminating third-party processing fees and double transport.

2. Railway Track Bundles and Bridge Infrastructure Demolition

High-carbon railway rails, fishplates, and reinforced bridge girders quickly stall medium-tonnage shears. The Q91-1600’s 16,000 kN main cylinder and 2,400-2,600 mm (94-102″) wide knife throat shear multiple bundled rail tracks and wide concrete-adhered bridge sections in a single stroke without manual oxy-fuel torch cutting.

3. Foundry Riser Pads, Ladle Skulls and Heavy Mill Returns

Foundries and specialty alloy plants handle irregular riser pads, forging flash, and pre-broken ladle skulls. The 7 to 8 meter open compression box accepts awkward, heavy returns directly from overhead magnet or grapple cranes, clamping them flat against the lower anvil before shearing.

4. Integrated Mega-Yards Processing Bales + Heavy HMS

National and regional scrap hubs supplying steelworks use the Q91-1600 as a central sizing line. Incoming light-scrap bales, heavy demolition girders, and shipbreaking hull plates all pass through the same chamber, consolidating yard logistics and spare blade inventory.

Bay Layout, Material Flow & Plant SCADA Integration

When integrating a 1600 ton scrap metal shear into a melt-shop bay or large outdoor yard, material handling speed determines net hourly tonnage. Each automatic cycle runs 20 to 35 seconds (loading, lateral wing compression, vertical hold-down clamping, 16,000 kN shear stroke, and pusher indexing). To match that cycle rate, we assist your engineers with upstream and downstream integration:

  • Infeed crane & grab loading: typically fed by an overhead magnet/grapple bridge crane or a stationary pedestal boom material handler mounted alongside the 7-8 m feeding tank.
  • Outfeed discharge & fines separation: sized furnace charge drops onto a heavy-duty steel apron conveyor or vibratory shaker table, which can feed a magnetic drum separator to screen out dirt and concrete grit before loading EAF buckets.
  • PLC & plant SCADA connectivity: the Siemens or Schneider PLC console includes industrial Ethernet (Profinet/Modbus) interfaces to transmit cut counts, hydraulic oil temperature, motor amperage, and maintenance alerts directly to your central control room.

Mill-Scale Tier Comparison – Q91-1600 vs 1250T vs 2000T

Specification Q91-1600 (This Model) Q91-1250 (1250T) Q91-2000 (2000T)
Shearing force 1600 ton (16,000 kN) 1250 ton (12,500 kN) 2000 ton (20,000 kN)
Continuous plate rating 150 mm (6″) (190 mm (7″) peak) 120 mm (5″) (150 mm (6″) peak) 170 mm (7″) (200+ mm peak)
Blade width 2,400 or 2,600 mm (102″) 2,000 or 2,200 mm (87″) 2,600 or 2,800 mm (110″)
Compression box length 7 / 7.5 / 8 m 7 / 7.5 / 8 m 8 / 9 / 10 m
Motor power 6×55 or 8×55 kW (330-440 kW) 4×45 to 6×45 kW (180-270 kW) 8×55 to 10×55 kW (440-550 kW)
Daily output 200-240 tons/day (25-30 t/h) 160-200 tons/day (20-25 t/h) 250-300+ tons/day
Baled scrap cutting Yes Yes Yes
Target installation 3-shift steel mill & mega-yard 2-shift heavy plate line Flagship shipbreaking & EAF plant

For plants processing under 200 tons/day with plate thicknesses up to 120 mm, our 1250 ton heavy-plate gantry shear offers a lower electrical footprint. When production demands 200-240 tons/day, 150 mm (6″) continuous plate cutting, and three-shift mill availability, this 1600 ton scrap metal shear provides the 2,400-2,600 mm (94-102″) throat and 330-440 kW pump capacity required without jumping to the civil cost of the 2000 ton flagship shear.

Complementary Mill & Yard Equipment

Integrated recycling bases operating a 1600 ton scrap metal shear for heavy HMS and plate typically route light sheet scrap, appliances, and car bodies through a high-throughput industrial scrap metal shredder for liberation and downstream magnetic sorting. For loose non-ferrous offcuts and stamping skeletons, pairing the plant with a hydraulic scrap metal baler produces dense furnace-ready bales.

Direct-from-China Structural Audit: Verifying Three-Shift Mill-Scale Integrity

When sourcing a 1600 ton scrap metal shear from China for 24/7 three-shift steelworks duty, the decisive difference between a genuine heavy manufacturer and an assembly workshop lies in frame metallurgy and downtime prevention. On a three-shift melt-shop line producing 180-260 tons/day, a single unplanned day of hydraulic or structural downtime costs more than the initial price gap between quotes.

  • Stress-Relieved Monoblock Side Frames: Confirm that the gantry side plates and crosshead slideways undergo full-furnace thermal stress-relief annealing after CO₂-shielded welding, preventing frame twist under asymmetric 16,000 kN off-center loads.
  • Cartridge Decompression Logic: Verify that the hydraulic manifold includes proportional pre-decompression valves that bleed cylinder oil pressure over 0.4 seconds before return stroke, eliminating pipe-hammer shock on 150 mm (6″) plate cuts.
  • Three-Shift Wear-Part Stocking Strategy: We supply each Q91-1600 with a matched spare kit of reversible H13 blades, bronze crosshead guide strips, and main cylinder seal kits so scheduled maintenance fits cleanly inside shift handovers.

Q91-1600 OEM Replacement Blades, -40°C Cold-Climate Package & Export HS Code 8462.3990

Manufactured by Huaxin Co., Ltd. (est. 1989), every 1600 Ton Hydraulic Gantry Shear (Q91-1600) is 100% brand-new, tested under 72-hour continuous full hydraulic load (16,000 kN (1,600 Metric Tons)), and backed by a 12-month warranty with dealer OEM private-label support. To keep your Q91-1600 operating at 22.0–30.0 TPH (180–250 TPD) across multi-shift duty, Huaxin Co., Ltd. machines direct-fit four-edge reversible blades, Hardox 450/500 wear liners, and 35CrMo/42CrMo cylinder seal kits—offering 5-day dispatch on standard spares and ≤20-day turnaround on custom-engineered components.

Q91-1600 Assembly / Consumable Factory Engineering Specification & Dual-Unit Rating Confirmed Customs HS Code
Complete Q91-1600 Hydraulic Shear 1600 Ton (16,000 kN / 1400T-1600T Western Class) · 6×55 kW or 4×90 kW (330–360 kW) Drive (630 kVA (380V or 6kV/10kV) Substation) · Cuts 150–170 mm (6–7″) solid alloy plate / Ø240 mm shaft HS 8462.3990
4-Edge Reversible Shear Blades 2,000 mm (80 inch) · Precision Ground (±0.02 mm (0″)) · M6V, H13, X45, D2 (52–56 HRC) or Forged H13 (55–58 HRC) HS 8208.1000
Arctic Sub-Zero (-40°C) & Tropical Options Q355D low-temp frame steel + -40°C cryogenic blades + Parker/Merkel Arctic seals + tank heaters HS 8412.2100 / 8462.9090

Q91-1600 Blade & Wear Part Quotation Note: Pricing for Q91-1600 replacement knives (2,000 mm (80 inch)) and Hardox chamber liners depends on alloy grade (M6V, H13, X45, D2 vs. Forged H13), sub-zero (-20°C to -40°C) impact requirements, order quantity, and Incoterms (EXW, FOB Tianjin, CIF, or packed freight-free inside your new Q91-1600 container). Contact Huaxin Co., Ltd. for an itemized Q91-1600 machine & spare parts quote →

FAQ – Q91-1600 structural steel cutting machine

How does the Q91-1600 differ from the 1250-ton gantry shear?

The Q91-1600 steps up in four critical areas: (1) continuous steel plate cutting increases from 120 mm (5″) to 150 mm (5 to 6″) (with a 190 mm (7″) peak rating), (2) blade width expands from 2,000-2,200 mm (79-87″) to 2,400-2,600 mm (94-102″) for wider structural scrap, (3) hydraulic drive power scales from 180-270 kW up to 330-440 kW (6×55 kW or 8×55 kW), and (4) daily output rises from 160-200 tons to 200-240 tons per day across three shifts.

Can the Q91-1600 heavy-duty guillotine scrap shear run three shifts continuously?

Yes. The Q91-1600 is engineered specifically for 24/7 three-shift steel mill and mega-yard duty. Its multi-pump hydraulic station allows N+1 pump isolation during maintenance, while industrial water/air oil-cooling and offline filtration keep oil viscosity stable across consecutive shifts. We include a preventive maintenance schedule and two-year spare parts list with every quotation.

Can the Q91-1600 shear compacted scrap bales alongside heavy plate?

Yes. Full-size bale cutting is standard on all HUAXIN shears from 1000T upward. The Q91-1600’s enlarged throat height and high-tonnage hold-down ram clamp and slice dense light-scrap bales into uniform furnace blocks in the same shift as 150 mm (6″) plate and HMS 1 & 2.

What maximum plate thickness and solid bar diameter can the Q91-1600 cut?

The Q91-1600 Q91-1600 hydraulic gantry shear cuts carbon and low-alloy steel plate up to 150 mm thick continuously and up to 190 mm occasionally. It also shears solid round steel bars up to Ø220-240 mm and square billets up to 190×190 mm (7″×7″). For daily cutting of plates above 190 mm (7″), step up to our Q91-2000 model.

What electrical transformer and civil foundation are required for a 1600T installation?

The 6×55 kW (330 kW) or 8×55 kW (440 kW) motor package typically requires a dedicated 500-630 kVA step-down transformer connection (matched to your 380V/400V/415V/440V 50/60 Hz plant supply), a reinforced concrete foundation pit/pad, and an 80-to-100-ton crane for heavy gantry erection. We provide full foundation blueprints, anchor bolt layouts, and electrical load tables upon order confirmation.

Can the Q91-1600 cut railway tracks and rolling-mill rebar bundles?

Yes. The 2,400-2,600 mm (94-102″) wide guillotine blade and 16,000 kN shearing cylinder easily cut whole rolling-mill rebar bundles, cobbled bar, and bundled heavy railway tracks (UIC60/AREA) to exact furnace charge lengths without pre-cutting.

How much does a 1600 ton scrap metal shear cost and what is the delivery lead time?

Final pricing depends on your chosen blade width (2,400 mm (94″) vs 2,600 mm (102″)), compression box length (7 m to 9 m), motor configuration (330 kW vs 440 kW), and outfeed conveyor options. We supply factory-direct EXW or CIF quotations with a full mechanical and electrical breakdown. Contact us with your daily tonnage and material specs for a formal quote within 48 hours.

What project details do you need to prepare a 1600T engineering quotation?

Please send: (1) your scrap mix, maximum plate/billet dimensions, and bale share, (2) target tons per shift and shift pattern (2 vs 3 shifts), (3) loading crane/grapple specs and outfeed conveyor requirements, (4) available plant voltage and transformer kVA, and (5) target furnace charge length. We will return a complete technical proposal within 48 hours.

Planning a 200-240 ton/day mill-scale shearing line? Send your material specs, shift schedule, and bay layout for an engineering recommendation and quotation within 48 hours. Explore our full hydraulic scrap metal shear range, step up to the 2000 ton flagship gantry shear, or compare our 1250 ton heavy-plate shear.

Production Standards, Utility Requirements & Related Reading (Q91-1600)

Engineered and assembled at Huaxin Co., Ltd. (est. 1989), the Q91-1600 is built for multi-shift scrap yard reliability, verified through ultrasonic plate inspection and live pre-shipment load testing. Requires a 500-630 kVA plant substation (low-voltage soft-start or 6kV/10kV high-voltage motors), delivering 200-240 tons/day (25-30 TPH) across 24/7 shifts.

Commercial & Technical Scope: Configured for operations comparing a 1600 ton hydraulic gantry shear for sale, Q91-1600 three-shift mill-scale guillotine shear, 150mm (6″) to 180mm (6 to 7″) heavy ship hull and bridge girder shear, 330-440 kW steelworks cutting line with full export documentation and engineer-led commissioning.

Related Technical & Line-Planning Guides

Request a Q91-1600 Factory Quotation & 2D Foundation Layout: Email Huaxin Co., Ltd. Sales Manager Leon Li at [email protected], message WhatsApp +86 159 0036 3543, or submit your feedstock details via our Contact Page to receive FOB/CIF pricing and 2D CAD drawings for the 1600 Ton Hydraulic Gantry Shear (Q91-1600) (16,000 kN (1,600 Metric Tons), 6×55 kW or 4×90 kW (330–360 kW)) within 24 hours.

Additional information

Machine Type

Hydraulic Scrap Metal Gantry Shear Machine

Model No.

Q91-1600

Shearing Force

1600Ton

Material Processed

Light, Medium and Heavy Scrap Metal
Steel Plate-up to 150 mm continuously; up to 190 mm occasionally
Steel Bar
Rebar
Steel Pipe-single or bundled, thick-wall included (within plate rating)
H Beam-Light, Medium and Heavy type
I Beam-Light, Medium and Heavy type
Light, Medium and Heavy Steel Structures (oversized sections require higher-capacity models)
Car Body
Baled Scrap-specified capability; cut to furnace-ready charge size
HMS 1 & 2-continuous duty

Application

Scrap Metal Recycling
Steel Recycling
Metal Processing
Baled Scrap Recycling

Industry

Scrap Recycling (large-scale)
Metal Recycling Plant (large-scale)
Large Steel Mill
Scrap Yard

Automation

Full Auto

Drive System

Hydraulic

Brand

HUAXIN

Origin

China

Certification

CE

ISO9001

Get A Free Quote

    Your Name *

    Your Email *

    Your Phone / WhatsApp *

    Machine Application *

    Raw Material

    Output Rate per Hour


    Ton / Hour

    Power Supply

    Subject

    Message

    OEM Replacement Blades, Wear Liners, Sub-Zero (-40°C) Packages & Customs HS Codes

    In addition to brand-new turnkey machinery backed by a 12-month factory warranty, HUAXIN manufactures and exports direct-fit OEM replacement blades, wear plates, high-manganese castings, and hydraulic cylinder assemblies—including custom-machined replacement blades built to your exact engineering drawings or sample dimensions. Standard wear parts ship within 5 business days, and custom-forged orders ship within a maximum of 20 days.

    Item / Component Category Export Customs HS Code Metallurgy & Engineering Options Lead Time & Pricing Factors
    Complete Host Machine 8462.3990 Hydraulic Scrap Metal Shearing Machine (Gantry / Alligator / Container / Inclined / Side-Compression / Shear Baler) (CE & ISO9001 Certified, 100% New with Warranty) 30-55 Days · EXW / FOB Tianjin / CIF / CFR / DDP
    Primary Cutting / Crushing Wear Parts 8208.1000 Four-Edge Reversible Shear Blades (M6V/H13/X45/D2 / 9CrSi / Forged H13 / SKD11) · Precision ground to ±0.02 mm tolerance 5 Days (Stock) / ≤20 Days (Custom) · Priced by steel grade, dimensions & order qty
    Sub-Zero / Arctic Climate Package (-20°C to -40°C) 8208.1000 / 8412.2100 Deep cryogenic-treated impact blades (anti-fracture at -40°C), Parker low-temperature cylinder seals & oil tank heaters Custom engineered for Russia, Canada, Nordic & Northern US yards · Contact for Quote
    Hydraulic Cylinders & Seal Kits 8412.2100 Forged 42CrMo piston rods with 0.06-0.08 mm hard chrome plating + genuine Parker / Hallite / NOK seal kits Seal Kits ≤5 Days / Cylinders ≤20 Days · Consolidated container or air express

    How Spare Parts Pricing is Calculated: Replacement blade, hammer, liner, and cylinder prices depend on (1) alloy grade requirement (M6V/H13/X45/D2 vs. Forged H13 vs. Cryogenic Sub-Zero Grade), (2) exact drawing dimensions & bolt pattern, (3) ambient operating temperature (-20°C to -40°C Arctic toughness vs. +50°C desert cooling), and (4) trade terms (EXW, FOB, CIF, or bundled duty-free inside your new machine container). Send us your machine model or blade drawing for a same-day factory quote →
